5KM UAV VIDEO & Bi-directional Data Radio Links

Model: FIM-2405

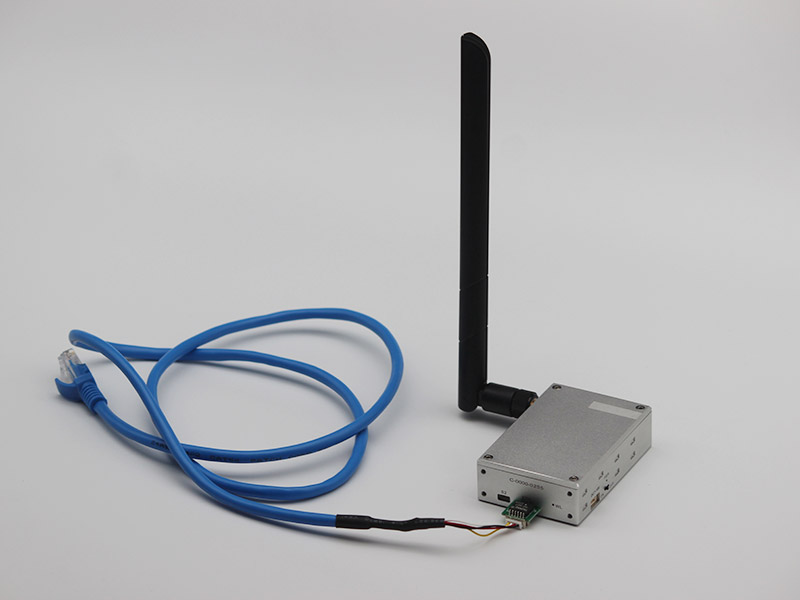

FIM-2405 mini transceiver is a new designed OFDM wireless communication equipment based on military standard for UAVs. It adopts H.264 technology + H.265's Algorithms video compression technology to achieve Utra-high resolution(1080P) video and bi-directional data transmitting simultaneously with low delay(15-30ms) for 5km range.

Availability:



Inquire

Model:
FIM-2405

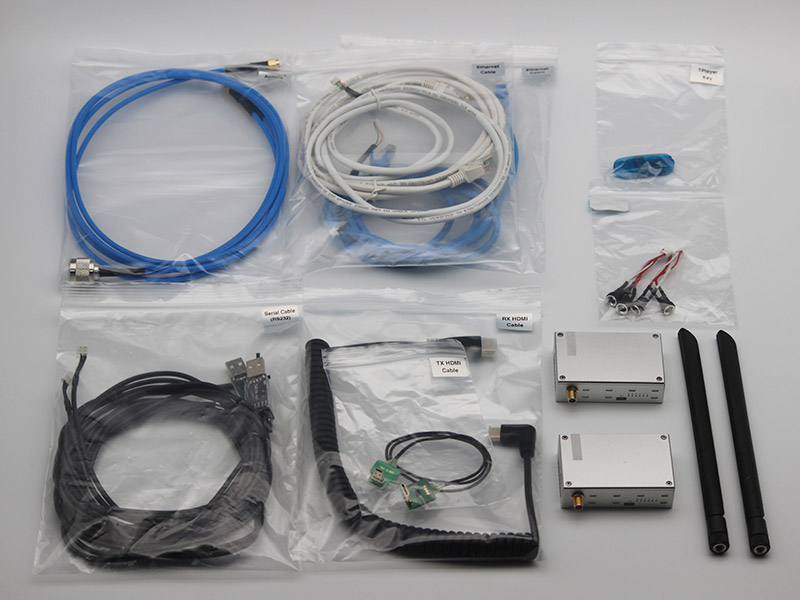

Product Description

Product Description

➢ Video compression H.264 technology + H.265's Algorithms

➢ Dual Built-in encoder/decoder

➢ HDMI and IP Camera interface

➢ HD video and Telemetry receiver

➢ Built to enable controlling and transmitting

➢ Drone Communication and Video Processing

➢ Bi-Directional Data Link Supporting Simultaneous HDMI and Digital IP Video Streams

➢ Ethernet interface support TCP/UDP

➢ Latency 30ms

➢ Video output support HDMI and IP to PC by Ethernet cable

➢ AES Encryption

➢ Frequency 2.402-2.478Ghz adjustable by software

➢ Bandwidth 4Mhz

➢ Sensitivity -100dbm

➢ Serial ports Telemetry MAVLINK/TTL

➢ CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation

➢ Conductive anodizing craft improves the integrity of RF signals

➢ Working Temperature: -40℃—+85℃

FIM-2405 Dimension

➢ Overall Dimension: 72.9×47.9x20.3mm

➢ Weight: 93g

Specifications

Frequency	2.4GHz(2402Mhz-2482MHz)
Error Detection	LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power	27dbm (Air to ground 4-6km)
Antenna Gain	TX:Omni antenna 19.6cm 3.5dbi RX:Omni antenna 19.6cm 3.5dbi
Power Consumption	TX: 7Watts
Power Consumption	RX: 6Watts
Frequency Bandwidth	4MHz
Latency	50-70ms for 1080P60/720P60 video encoding and decoding
Transmission Rate	3Mbps
Receive Sensitivity	-100dbm@4Mhz
Video Color Space	Default 4:2:0
Antenna	1T 1R
Video Input/output Interface	HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format	H.264+H.265
Bit Rate	Software adjustment, Max 115200bps
Encryption	AES 128
Transmission Distance	Air to ground 4-6km
Start-up time	25s
Two-way function	Support video and duplex data simultaneously
Data	Support bi-directional TTL (Voltage:+-13V(RS232), 0~3.3V(TTL)
Power supply	DC7- 18V(DC12V Suggested)
Interface	HDMI Mini x1
	100Mbps Ethernet to RJ45 on Windows × 1
	S1 TTL bi-directional serial port x1
	Power Input x1
Indicator Light	HDMI input/output Status(WL Light)
	Signal Strength Indicato( 1, 2, 3)
	Connection Status Indicator(5, 6)
	Video circuit board Work Indicator(4)
	Power
HDMI	HDMI mini/Flexible Flat Cable(FFC)
Temperature Range	Operating temperature: -40°C ~+ 85°C
Temperature Range	Storage temperature: -55°C ~+ 85°C
Metal Case Design	CNC technology
	Double aluminum alloy shell
	Conductive anodizing craft
Dimension	72.9×47.9x20.3mm
Weight	Tx: 93g/Rx: 93g
