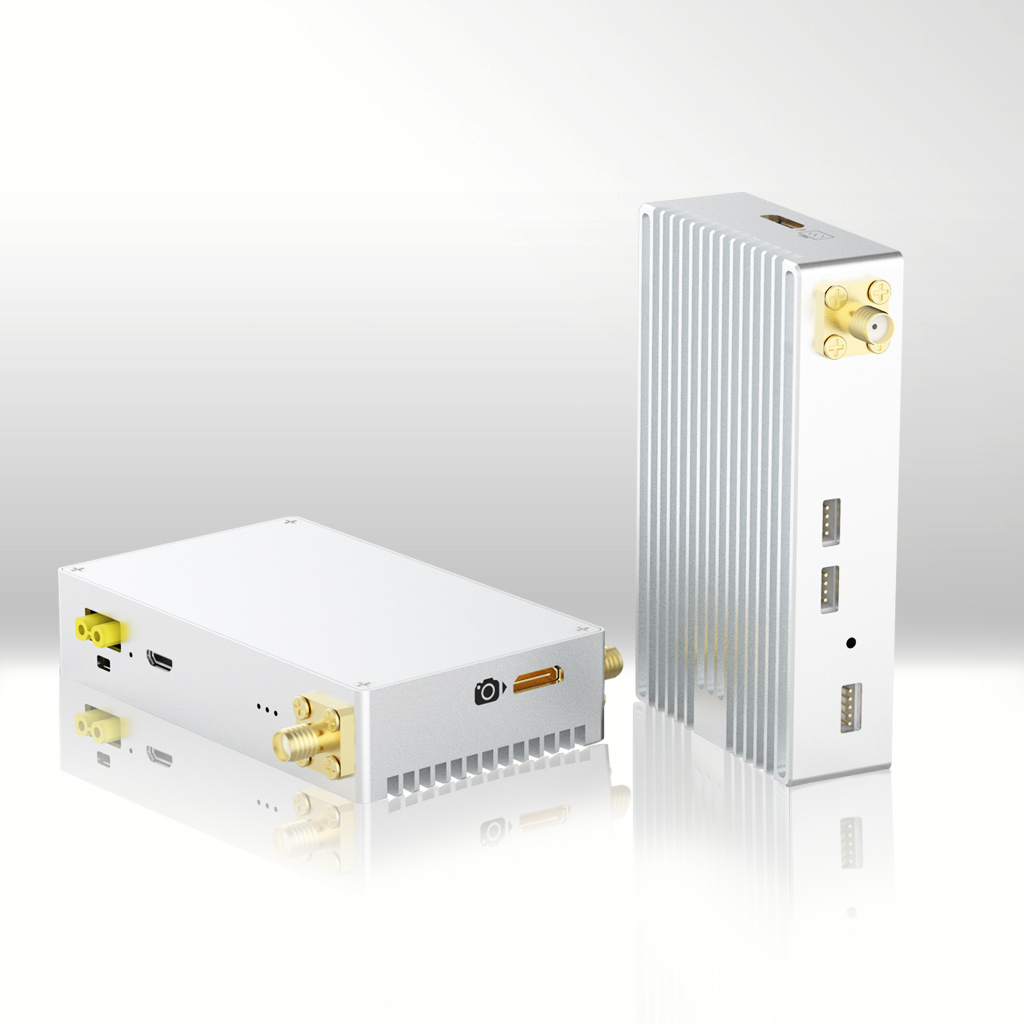

7-8km UAV HDMI Video, Ethernet and Bi-directional Data Link

Model: FPS-8408

FPS-8408 is mini COFDM video transmitter offers a video, Ethernet signal and bi-directional Data Link specifically designed for commercial UAVs/Multi-rotor and industrial drones for 7-8km wireless transmitting.

  • FPS-8408

Product Description

Frequency Option


➢ 800Mhz: 806-826Mhz

➢ 1.4Ghz: 1428~1448 MHz



Bi-directional Data LinkKey Features


➢ Video Input Interface: HDMI and Ethernet

➢ Both 1400Mhz and 800Mhz have penetrate ability for barriers

➢ 1* Serial Ports: Bi-directional Data Transmission

➢ 2* Antennas: Dual Tx antenna and Dual Rx antenna

➢ 3*100Mbps Ethernet port support TCP/UDP

➢ 1/4 inch screw hole on Tx for fixing on UAV

➢ Latency less than 50ms

➢ H.264 Video Compression

➢ Baud Rate: 115200bps


7-8km UAV HDMI Data Link



➢ Support MAVLINK TELEMETRY

➢ Support 2T 2R

➢ NLOS transmission with 800Mhz and 1.4Ghz

➢ Working Temperature: :-40 ~+ 85℃

➢ CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation

➢ Conductive anodizing craft improves the integrity of RF signals



Specifications

Frequency 800Mhz 806~826 MHz
1.4Ghz 1428~1448 MHz
Bandwidth 4MHz
RF Power 0.4Watt (Bi-Amp, 0.4watt Peak Power of each power amplifier)
Antenna Gain

800Mhz

TX:Omni antenna  25cm  2dbi

RX:Omni antenna  60cm  6dbi
1.4Ghz

TX:Omni antenna  35cm  3.5dbi

RX:Omni antenna  60cm     5dbi
Transmit Range 800Mhz: 7km
1400Mhz: 8km
Transmit Rate 3Mbps (Video Stream, Ethernet Signal and serial data share)
The best video stream: 2.5Mbps
Baud Rate 115200bps(Adjustable)
Rx Sensitivity -104dbm@4Mhz
Fault Tolerance Algorithm Wireless baseband FEC forward error correction
End to End Latency 50-80ms for 1080P60/720P60 video encoding and decoding
Link Rebuild Time <1s
Modulation Uplink QNSK/Downlink QNSK
Encryption AES128
Start Time 15s
Power DC-12V (7~18V)
Interface Interfaces on Tx and Rx are same
Video input/Output: Ethernet×3
Power Input Interface×1
Antenna Interface: SMA×2
Serial×1: TTL(±3.3V)
Indicators Power
Ethernet Status Indicator
Wireless Connection Setup Indicator x 3
Power Consumption Tx: 4W(Max)
Rx: 3W
Temperature Working: -40 ~+ 85℃
Storage: -55 ~+100℃
Dimension Tx/Rx: 57 x 55.5 x 15.7 mm
Weight Tx/Rx: 65g
Metal Case Design CNC Technology
Conductive anodizing craft
Double Aluminum Alloy Shell
