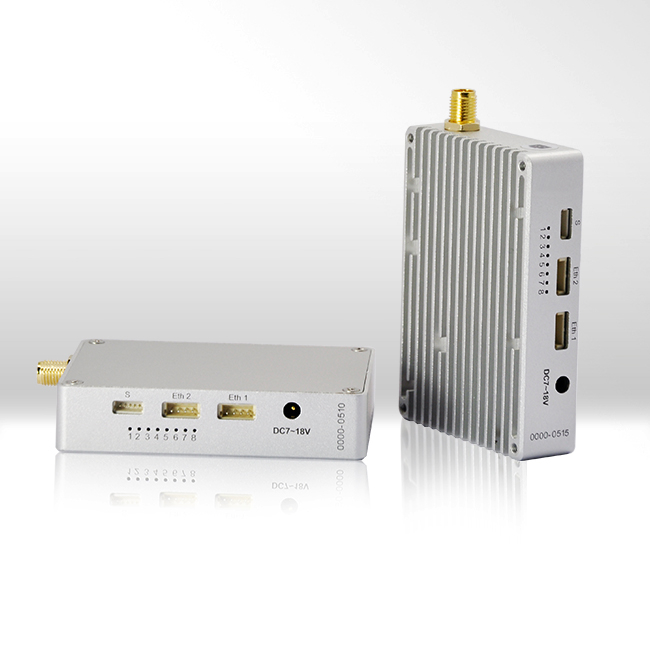

5km TCP/IP/UDP COFDM UAV Video And Data Links

Model: FIP-2405

FIP-2405 mini transceiver is a new designed OFDM wireless communication equipment based on military standard. It supports 2.402-2.478Ghz, transmit HD IP Video and Bi-directional for 5km air to ground.

  • FIP-2405

Product Description

5km video transmitter and receiver for drone

➢ Double 10/100Mbps Ethernet port support UDP/TCP

➢ One Serial port support Telemetry MAVLINK/TT

➢ Serial port supports APM, Pixhawk 2.1, Pixhack V3, Pixhawk 2 & Pixhawk4

➢ AES encryption video transmission

➢ Excellent performance in movement condition support max moving speed 400km/h

➢ Working frequency adjustable by our software 2402-2478Mhz

➢ Transmit Rate 3Mbps

➢ Bandwidth 4Mhz


TCP/IP/UDP UAV Video Links

➢ CNC technology double aluminum alloy housings featured, good impact resistance and heat dissipation

➢ Conductive anodizing craft improves the integrity of RF signals

➢ Working Temperature: -40℃—+85℃


COFDM UAV Video and Data Links


➢ Dimension: 67.8×47.5x14.8mm

➢ Weight: 68g


Specifications

Frequency 2.4GHz(2402Mhz-2482MHz)
RF Transmitting Power 27dBm(air to ground 4-6km)
Frequency Bandwidth 4MHz
Antenna 1T 1R
Antenna Gain

TX:Omni antenna  19.6cm  3.5dbi

RX:Omni antenna  19.6cm  3.5dbi

Adjustment mode of bit rate Software adjustment
Communication Channel Encryption AES 128
Transmission Mode point to point
Error Detection LDPC FEC
Start-up time 25s
Two-way function Support video and duplex data simultaneously
Data TTL (±.3V)
Date Rate 3Mbps
Sensitivity -100dbm@4Mhz
Power DC 7-18V
Power Consumption TX: 4Watts
RX: 4Watts
Temperature Operating temperature: -40 - +85°C
Storage temperature: -55 - +85°C
Interface Power input interface × 1
Antenna interface × 1
Serial Interface x 1
Ethernet Interface × 2
Indicator Power indicator(8)
Connection Status Indicator(4, 5, 6, 7)
Signal Strength Indicator(1, 2, 3)
Metal Case Design

CNC technology

Double aluminum alloy shell

Conductive anodizing craft
Size 67.8×47.5x14.8mm
Net Weight Tx: 68g
Rx: 68g
