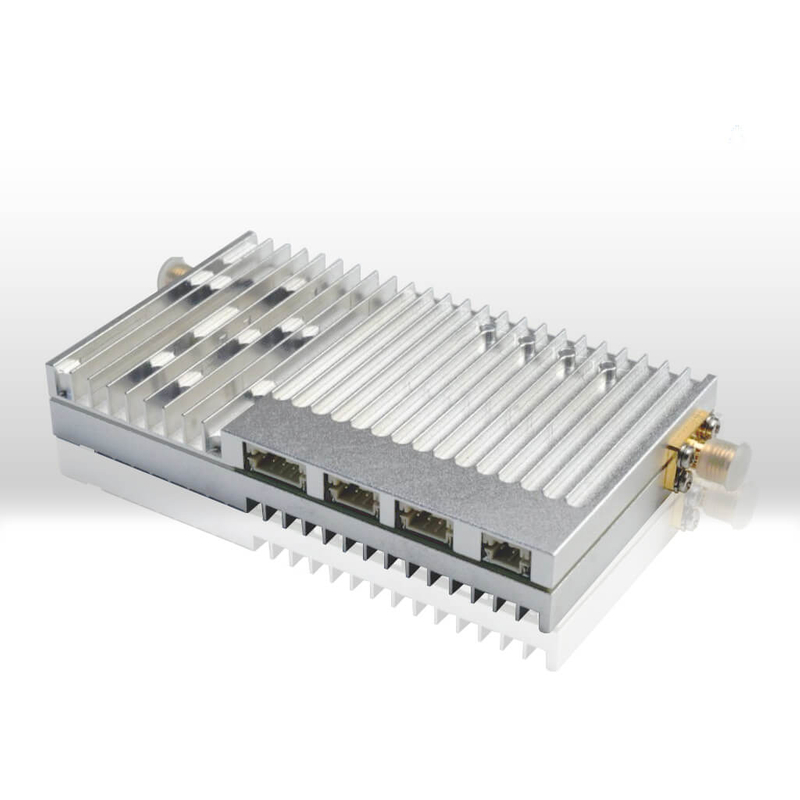

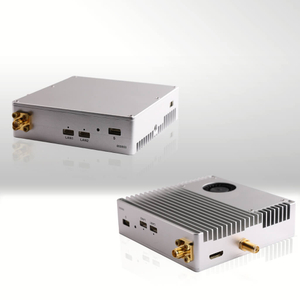

100km Drone IP MESH Video Downlink

Model: FD-615MT

FD-615MT build a no center, self-forming, self-adapting and self-healing dynamic routing/
automatic relay communication mesh network. It achieves dynamic routing, multihop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications, such as fast movement and non-line-of-sight environmental distance.

Smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH, which make FD-615MT provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate and distance of 100km-150km or more. It Is speical for wireless communication in critical private networks.


Inquire

Model: FD-615MT

Product Description

Product Description

100km Drone IP MESH Video Downlink

Key Features

➢Bandwidth 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz

➢10Watts RF power

➢Light weight: 280g

➢Transmitting Power: 40dBm

➢Support 800Mhz/1.4Ghz freqeuncy options

➢Air to ground 100km-150km range

➢NLOS 3km-10km ground to ground distance

➢Automatic power control

➢Automatic frequency point control

➢Ethernet communication via PH2.0 interface

➢RS232 communication via PH2.0 interface

Application

➢Point-to-multipoint long-distance communication

➢Power and hydrological line patrol monitoring

➢Emergency communications for fire fighting, border defense, and military

➢Maritime communications

➢Digital oilfield

➢Fleet formation

Interface

GENERAL		MECHANICAL
TECHNOLOGY	MESH based on TD-LTE	TEMPERATURE	-20º to +55ºC
ENCRYPTION	ZUC/SNOW3G/AES(128/256) OptionalLayer-2 Encryption	IP RATING	IP65
DATA RATE	30Mbps	DIMENSIONS	160.46830mm
SENSITIVITY	10MHz/-103dBm	WEIGHT	280g
RANGE	100km-150km(Air to ground) NLSO 3km-10km(Ground to ground) (depends on the actual environment)	MATERIAL	Silver Anodized Aluminum
NODE	32 nodes	MOUNTING	Vehicle-mounted/Onboard
MIMO	Spatial Multiplexing, Space-Time Coding, TX/RX Eigen Beamforming	POWER
POWER	10watts	VOLTAGE	DC 24V±10%
LATENCY	One Hop Transmission≤30ms	POWER CONSUMPTION	30Watts
FREQUENCY		INTERFACE
2.4GHZ	2401.5-2481.5Mhz	RF	2 x TNC
1.4GHZ	1427.9-1447.9MHz	ETHERNET	1xPH2.0
800MHZ	806-826 MHz	PWER	1 x DC Input
Note: The freqeuncy band supports customized		RS232	1xPH2.0
Note: The freqeuncy band supports customized		Debug	1xPH2.0

COMUART

Electrical Level	2.85V voltage domain and compatible with 3V/3.3V level
Control Data	RS232
Baud rate	115200bps
Transmission Mode	Pass-through mode
Priority level	Higher priority than the network port When the signal transmission is crowed, the control data will be transmitted in priority
Note: 1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-615MT node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself

Automatic Frequency Point Control

After booting, the mimo mesh will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.

Automatic Power Control

The transmitting power will be automatically adjusted and controlled according to the real time signal quality.
