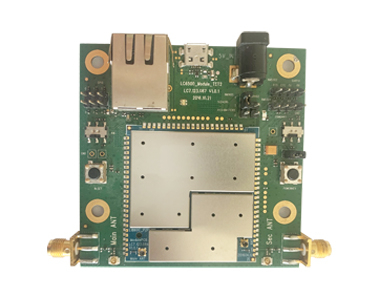

30Mbps IP MESH Wireless NLOS Video and TTL data Radios

Model: FD-6100

FD-6100 is a wireless transmission product designed by IFLY based on mature SOC chipset, which is a IP MESH radio offering HD video transmission and MIMO capability for high data capacityies.

It adopts automatic frequency modulation to avoid anti-interference, low power consumption and small size to meet the requirements of wireless transmission during mobile.
Availability:
  • FD-6100

Product Description

IP MESH



Featrues


➢ Self-forming, self-healing mesh architecture

Data capacity-30Mbps of IP data

Low latency IP communication

Support WEBUI for network management and parameters configurable

Interlink mode for enhanced capability and large scale systems

Support user configuration layer 2 encryption and ZUC/SNOW3G/AES encryption

Full duplex TTL control data transmission. And the control data transmission is higher priority then the network signal to ensure your vehicle is always under control



Applications


Ideal for use for wide area coverage & multi-hop, mobile applications such as roboticss

Tactical communications

Unmanned land vehicles wireless video transmission


manet radio


Specification


Name Specifications
Technology MESH based on TD-LTE
Modulation QPSK, 16QAM, 64QAM
Encryption ZUC/SNOW3G/AES(128/256) OptionalLayer-2 Encryption
Node 32
Dimension 45*43.4*3mm
Interface

UART*2

USB*1

HSIC*1

12C*1

GPIO*6

JTAG*1

Frequency

Default: 806-826Mhz, 1427.9-1447.9Mhz, 2401.5-2481.5Mhz

400Mhz-6Ghz(on your request)

Bandwidth 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz
Transmitting RF Power

200mw (200mW-10watts on request)

Data Rate 30Mbps
Receiving Sensitivity

2.4Ghz: -106dBm@3Mhz, -104dBm@5Mhz, -102dBm@10Mhz, -99dBm@20Mhz

1.4Ghz: -108dBm@3Mhz, -103dBm@5Mhz, -103dBm@10Mhz, -100dBm@20Mhz

800Mhz: -106dBm@3Mhz, -104dBm@5Mhz, -102dBm@10Mhz, -99dBm@20Mhz

Transmission Range 2km-20km
Delay

Transmission delay from slave node to master≤200ms(USB/HSIC data transmission)

Air Interface delay<10ms

Power DC3.7-4.35V
Working Current

Send: 600-700mA

Receive: 500-600mA

Storage Temperature
-40℃~+85℃
Working Temperature -20℃~+75℃
COMUART
Electrical Level 2.85V voltage domain and compatible with 3V/3.3V level
Control Data TTL mode

Baud rate

115200bps
Transmission Mode Pass-through mode
Priority level


Higher priority than the network port


When the signal transmission is crowed, the control data will be transmitted in priority

Note:

1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-6100 node can receive serial data.

2. If you want to distinguish between sending, receiving and control, you need to define the format yourself
