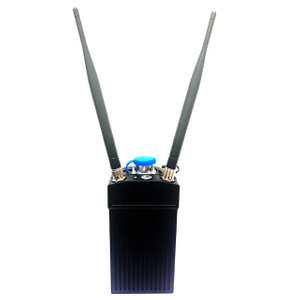

20Watts Tactical MIMO IP MESH for Vehicle Installations

FD-615VT

IFLY FD-615VT 2x2 MIMO IP MESH radio is built to create powerful, secure communication networks anywhere, anytime.

It has been designed for non-line-of-sight long range communication where communication is most critical and difficult to achieve. Providing up to 20W total RF power output over two transmit ports for extreme long-range for high data throughput for vehicle-to-vehice and vehicle to drone communications.

FD-615VT is high sensitivity UHF band MANET solution for vehicles. It achieve better performace in non-line-of-sight environment for sharing voice, video, text, sensor, and location data while on the move in nlos complex environment.

Product Description

Introduction:


FD-615VT IP Mesh Radios can be combined in a fluid self-forming, self-healing mesh network containing up to 32 nodes.

The entire mesh can operate in bandwidth from 1.4kHz to 20MHz, employing IFLY unique COFDM modulation scheme and LTE technology protocol with very high sensitivity, which make its performance very stable in nlos enviornment. Multiple Input Multiple Output (MIMO) technology transmits two way UDP/TCPIP data and UART control data.


Features:


➢Anti-interference: Automatically frequency hopping

➢Long Range: Up to 20watts RF Power to achive nlos 10km-50km ground to ground

➢Software: Visualizedreal commanding and dispatching software to real-time audio, video and data dispatching and management

➢UART Port for accessing sensors and control data

➢IP Interface as standard for easy connection of cameras and data

➢Easy control of cameras for PTZ

➢IP Mesh capability

➢Automatic Adaptive modulation

➢Built in wifi module for Management software wireless access to


IFLY Tactical MESH Radio

GENERAL MECHANICAL
TECHNOLOGY MESH based on TD-LTE Technology Standard TEMPERATURE -20º to +55ºC
ENCRYPTION ZUC/SNOW3G/AES(128/256) OptionalLayer- 2 Encryption DIMENSIONS 300×250×80mm
DATA RATE 30Mbps(Uplink+downlink) WEIGHT 8KG
SENSITIVITY 10MHz/-103dBm MATERIAL Anodized Aluminum
RANGE 10km-50km(Ground to ground) MOUNTING Vehicle- mounted
NODE 32 POWER INPUT DC28V
MODULATION QPSK, 16QAM, 64QAM POWER CONSUMPTION 120W
MIMO 2X2 MIMO INTERFACE
ANTI-JAMMING Automatically frequency hopping RF
2xN Type Connector
RF POWER
20Watts ETHERNET RJ45
LATENCY One Hop Transmission≤30ms POWER INPUT 1*DC Input
FREQUENCY TTL DATA 1*UART
1.4Ghz 1427.9-1447.9MHz DEBUG 1*USB
800Mhz 806-826 MHz

COMUART
Electrical Level 3.3V and compatible with 2.85V
Control Data  TTL
Baud rate 115200
Transmission Mode  Pass-through mode
Priority Level

Higher priority than the network port

When the signal transmission is crowed, the control data will be transmitted in priority

Note:

1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-615VT node can receive serial data.

2. If you want to distinguish between sending, receiving and control, you need to define the format.


IFLY MESH solutions are capable of being set up and maintained autonomously, so personnel can focus on missions at hand as opposed to troubleshooting connectivity problems.
